BrewBuilt™ Mash Tun - Size & Valve Options

$0.00

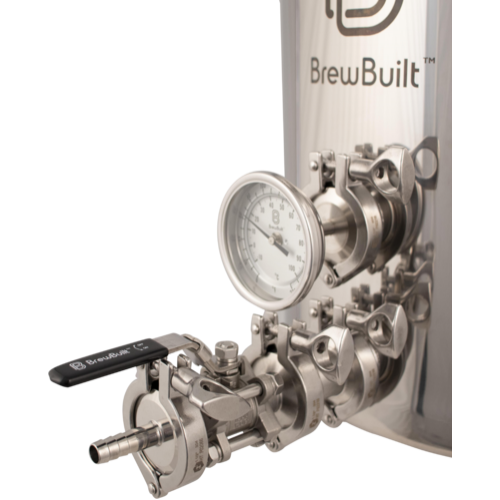

The BrewBuilt Mash Tun is built around the BrewBuilt T.C. Kettle, fitted out with a heavy-duty false bottom, large face dial thermometer, and all stainless valve with 1/2" barb (3 options available), along with all the fittings and gaskets you'll need.

3 Options

1) T.C. x FPT Ball Valve hardware packs

2) Butterfly Valve

3) T.C. x T.C. Ball Valve hardware packs

Our T.C. kettles were designed to keep pace with the ever-evolving world of brewing technology. Tri-clamp fittings are standard fare in professional breweries, and they’ve been widely adopted in homebrewing as T.C. fermenters and pumps become more affordable and widely available. Tri-clamp fittings, also known as Tri-clover, allow you to make a sanitary connection that is free of nooks and crannies for contaminants to take hold. They are much easier to break down for cleaning compared to threaded connections, and they don’t require Teflon tape to make a watertight seal. T.C. fittings and accessories also give you the distinct advantage of being able to clean in place (CIP), so you don’t need to break down your entire system after every brew day.

These days homebrewers have a lot of strong choices when it comes to their kettle purchase. BrewBuilt has adopted a modern feature set designed to make the brew day easier. Silicone handle and lid grips help prevent burns. Etched internal volume markings make filling the kettle for mash or boil simple. Welded valve and thermometer ports are leak-free and never require maintenance--no more discovering worn gaskets on brew day. Sealed handle rivets are strong and allow the entire kettle to be filled if necessary. And perhaps best of all, it features the signature BrewBuilt notched lid with a silicone plug that allows the lid to be in place while using immersion chillers or an Ultimate Sparge Arm. These kettles are truly designed for brewing.
BrewBuilt Homebrewing Products: Designed for Brewing, Built to Last.

Size:
Options:

The BrewBuilt Mash Tun is built around the BrewBuilt T.C. Kettle, fitted out with a heavy-duty false bottom, large face dial thermometer, and all stainless valve with 1/2" barb (3 options available), along with all the fittings and gaskets you'll need.

3 Options

1) T.C. x FPT Ball Valve hardware packs

2) Butterfly Valve

3) T.C. x T.C. Ball Valve hardware packs

Our T.C. kettles were designed to keep pace with the ever-evolving world of brewing technology. Tri-clamp fittings are standard fare in professional breweries, and they’ve been widely adopted in homebrewing as T.C. fermenters and pumps become more affordable and widely available. Tri-clamp fittings, also known as Tri-clover, allow you to make a sanitary connection that is free of nooks and crannies for contaminants to take hold. They are much easier to break down for cleaning compared to threaded connections, and they don’t require Teflon tape to make a watertight seal. T.C. fittings and accessories also give you the distinct advantage of being able to clean in place (CIP), so you don’t need to break down your entire system after every brew day.

These days homebrewers have a lot of strong choices when it comes to their kettle purchase. BrewBuilt has adopted a modern feature set designed to make the brew day easier. Silicone handle and lid grips help prevent burns. Etched internal volume markings make filling the kettle for mash or boil simple. Welded valve and thermometer ports are leak-free and never require maintenance--no more discovering worn gaskets on brew day. Sealed handle rivets are strong and allow the entire kettle to be filled if necessary. And perhaps best of all, it features the signature BrewBuilt notched lid with a silicone plug that allows the lid to be in place while using immersion chillers or an Ultimate Sparge Arm. These kettles are truly designed for brewing.
BrewBuilt Homebrewing Products: Designed for Brewing, Built to Last.

BrewBuilt™ Mash Tun - Butterfly Valve

The BrewBuilt Mash Tun is built around the BrewBuilt T.C. Kettle, fitted out with a heavy-duty false bottom, large face dial thermometer, and all stainless butterfly valve with 1/2" barb, along with all the fittings and gaskets you'll need.

Key Features:

  • Two welded T.C. couplers for a lifetime of leak free use

  • Custom-designed heavy duty false bottom with T.C. dip tube

  • Silicone gasket on the false bottom ensures no grain bypass at the kettle wall

  • Dial face thermometer with 6" probe

  • Butterfly Valve with 1/2" barb

  • AISI304 Stainless Steel construction for longevity and excellent corrosion resistance

  • Stainless handles and rivets for secure lifting

  • Silicone coated kettle and lid handles for heat protection

  • Lid is designed to conveniently hang from a handle

  • 4 mm Tri-Clad Bottom with Aluminum Core heats quickly and disperses heat evenly to prevent scorching

  • Induction burner compatible

  • 1.0mm (10 & 15 gal) or 1.2mm (20, 30 & 50 gal) thick side walls resist denting

  • 1.2:1 height to diameter ratio provides optimal evaporation rate during boiling

  • Industry-First notched lid with silicone plug accommodates an immersion chiller or sparge arm

  • Internally etched volume markers from top to bottom for easy filling

BrewBuilt™ Mash Tun - T.C. x FPT Ball Valve

The BrewBuilt Mash Tun is built around the BrewBuilt T.C. Kettle, fitted out with a heavy-duty false bottom, large face dial thermometer, and T.C. x FPT ball valve with oversized 5/8" barb—ideal for using 1/2" ID silicone transfer tubing—along with all the fittings and gaskets you'll need.

Key Features:

  • Two welded T.C. couplers for a lifetime of leak free use

  • Custom-designed heavy duty false bottom with T.C. dip tube

  • Dial face thermometer with 6" probe

  • T.C. x FPT ball valve with 5/8" barb

  • AISI304 Stainless Steel construction for longevity and excellent corrosion resistance

  • Stainless handles and rivets for secure lifting

  • Silicone coated kettle and lid handles for heat protection

  • Lid is designed to conveniently hang from a handle

  • 4 mm Tri-Clad Bottom with Aluminum Core heats quickly and disperses heat evenly to prevent scorching

  • Induction burner compatible

  • 1.0mm (10 & 15 gal) or 1.2mm (20, 30 & 50 gal) thick side walls resist denting

  • 1.2:1 height to diameter ratio provides optimal evaporation rate during boiling

  • Industry-First notched lid with silicone plug accommodates an immersion chiller or sparge arm

  • Internally etched volume markers from top to bottom for easy filling

BrewBuilt™ Mash Tun - T.C. x T.C. Ball Valve

The BrewBuilt Mash Tun is built around the BrewBuilt T.C. Kettle, fitted out with a heavy-duty false bottom, large face dial thermometer, and T.C. x T.C. ball valve with 1/2" barb, along with all the fittings and gaskets you'll need

Key Features:

  • Two welded T.C. couplers for a lifetime of leak free use

  • Custom-designed heavy duty false bottom with T.C. dip tube

  • Silicone gasket on the false bottom ensures no grain bypass at the kettle wall

  • Dial face thermometer with 6" probe

  • T.C. x T.C. ball valve with 1/2" barb

  • AISI304 Stainless Steel construction for longevity and excellent corrosion resistance

  • Stainless handles and rivets for secure lifting

  • Silicone coated kettle and lid handles for heat protection

  • Lid is designed to conveniently hang from a handle

  • 4 mm Tri-Clad Bottom with Aluminum Core heats quickly and disperses heat evenly to prevent scorching

  • Induction burner compatible

  • 1.0mm (10 & 15 gal) or 1.2mm (20, 30 & 50 gal) thick side walls resist denting

  • 1.2:1 height to diameter ratio provides optimal evaporation rate during boiling

  • Industry-First notched lid with silicone plug accommodates an immersion chiller or sparge arm

  • Internally etched volume markers from top to bottom for easy filling
